Cole-Parmer WS-200-4 Stuart Water Still 240 VAC
.png)
Product Code : SCL-CLE-12764

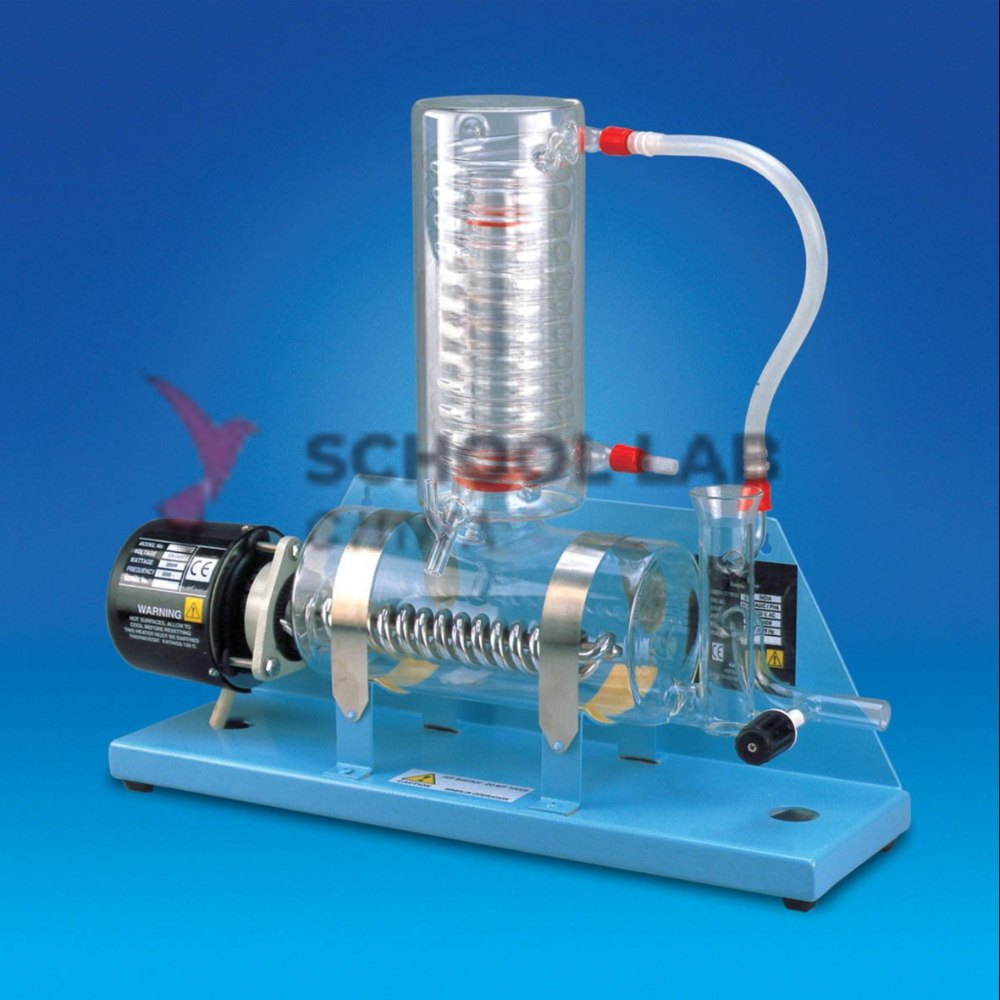

The Distinction D4000 is simple glass water still
with a silica sheathed heating element which ensures top purity distillate at
an economical price.
- Designed to give a reliable performance and
has an output of 4 litres per hour of high quality distilled water.
- The unique condenser design ensures that the
droplets of distilled water remain in contact with the cooling coil for
the longest possible time producing cold distilled water and pre-heating
the boiler feed to increase efficiency.
- The Distinction is supplied complete with a
'reservoir level control' which fits into the distillate collecting vessel
and will turn off the heating element when the vessel is full. Prevents
overflow if the still is inadvertently left switched on when unattended.
With two independent safety thermostats to prevent over heating in the
event of an interruption to the water supply.
- A built in PTFE drain stopcock and acid funnel
allow easy cleaning without dismantling the glassware which protect the
still from overheating in the event of cooling water supply failure, or
loss of water from the boiler.
- The condenser is fitted with screw thread
connections for safe and simple hose fitting and removal without risk of
breakage.
- The still can be wall or bench mounted. The
stand is pre-drilled to facilitate wall mounting.
- The Distinction complies fully with
IEC1010-1/ENG1010-1:1993 and carries the CE mark.
Specification:
- Output: 4 litres per hour
- Water supply: Minimum flowrate 1 litre per
min, Min pressure 0.2 x 105 Nm-2 (3 psi)
- Distillate quality: Pyrogen free, Conductivity
1.0-2.0µScm-1,
- Temperature of water: 25-35°C
- Element power: 3kW, silica sheathed
- Electrical supply: 220-240V, 50-60Hz Single
phase
- Dimensions: 540 x 160 x 410mm, width x depth x
height
- Mass: 6.5kg
